Quick Details

  • Material: Carbon Steel, Carbon steel such as A266/A350-LF2
  • Technics: Forged
  • Place of Origin: Jiangsu, China (Mainland)
  • Connection: Welding
  • Certification: ISO 9001:2000
  • Standard: According to customer's requirements

Packaging & Delivery

Packaging Details wooden cases
Delivery Time delivery time is according to the actual order
titanium tube sheet


1.Grade: Gr1  Gr2  Gr5  Gr7  Gr9  G12

2.Standard :    astm b265

3.State:Hot Rolled / Cold Rolled------Annealed

4.Specification:  Thickness: 0.3-30mm

                              Width: 10-1200mm

                             Length: Less than 4000 mm

5.Surface: bright,polished

6.Usage: industry

7.Advantage of titanium sheet

Light weight, High strength, Good corrosion resistance, Good process performance

 Other Type: Slip-On, Welding Neck, Blind, Socket Welding, Lap Joint,Threaded and Plate etc.

Pressure Ratings: Class 150, 300, 600, 900, 1500 and2500.
Pressure Ratings: PN 6, PN 10 , PN 16, PN 25, PN 40 and PN 64.
Pressure Ratings: JIS 5K, 10K, 16K, and 20K.
Standdard: ANSI,DIN,EN,BS,JIS,AWWA,BS and GB ect
Material: Stainless steel, Carbon steel and Alloy steel etc.
Treatment of Prevent Oxygenizement:Oil, Paint, Galvanization or based the willing of customers

Packing: Wooden case, sea-worthy plywood pallets or as per customers requirement

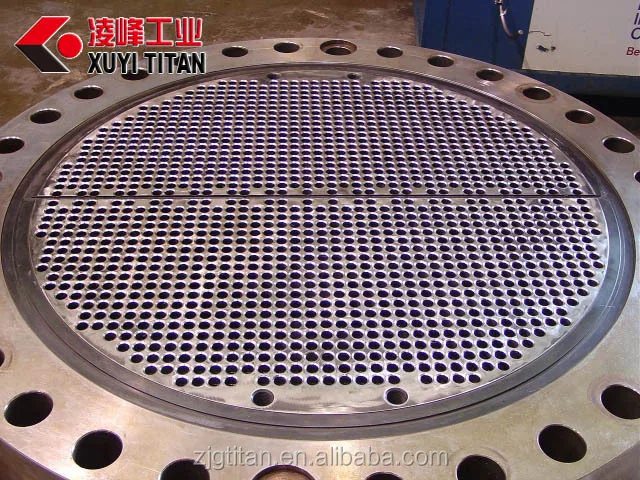

provides precision tube sheets with various materials include wide range of clad steel consisting of corrosion resistant materials. We are strict to use of high quality and guaranteed raw material , proved by raw material certificate with each delivery.



CNC drilled, chamfer, grooved etc as the drawings' requirements.
Tube holes can be drilled and reamed and can be machined with one or more grooves. This greatly increases the strength of the tube joint.
Type of materials Technical requirements
 * according to
Duplex Stainless SteelASTM/ASME SA182 F44, F45, F51, F53, F55, F60, F61
Stainless SteelASTM/ASME SA182 F304,304L,F316,316L, F310, F317L, F321, F347
Carbon SteelASTM/ASME A105, A350 LF1, LF2, A266, A694, A765 Gr.2
Alloy SteelASTM/ASME SA182 F1, F5, F9, F11, F12, F22, F51, A350-LF3
Non FerrousTitanium, Brass, Al-Brass, Copper Nickel, Nickel Alloys, Hastelloy
Titanium ASTM/ASME SB381, Gr.1, Gr.2, Gr.5, Gr.7, Gr.12, Gr.16
Copper NickelASTM/ASME SB151, UNS 70600(Cu-Ni 90/10), 71500(Cu-Ni 70/30)
Brass, Al-brassASTM/ASME SB152 UNS C10100, C10200,C10300,C10800,C12200
Nickel AlloysASTM/ASME SB169,SB171, SB564, UNS 2200, UNS 4400, UNS 8825
UNS 6600, UNS 6601, UNS 6625
Alloy 20ASTM/ASME SB472  UNS 8020
HastelloyASTM/ASME SB564, UNS10276 ( C 276 )
Claded materialsASTM/ASME SB898, SB263, SB264 or closer
explosion cladding, making materials of 2 in 1 or 3 in 1.
Titanium- Steel, Nickel-Steel,Titanium- Copper,
Stainless Steel- Carbon Steel, Alloys- Steel etc.
